The CEIA CMD Ground Search Metal Detector satisfies the most stringent Military Operational Requirements

Tests carried out by Authoritative International Bodies under controlled conditions demonstrate that the CEIA Metal Detectors provide overall superior performance in the areas of detection distance, soil compensation capability and immunity to external interference.

The CEIA CMD model is a very high performance, high-sensitivity Compact Metal Detector designed to detect metal and minimum-metal content targets in conductive and non-conductive soils, including laterite and magnetite and satisfies military quality and reliability standards. The CEIA CMD complies with the ISO-9001 standard and has been designed to satisfy the most stringent operational requirements in any application field.

One-Piece Foldable Design

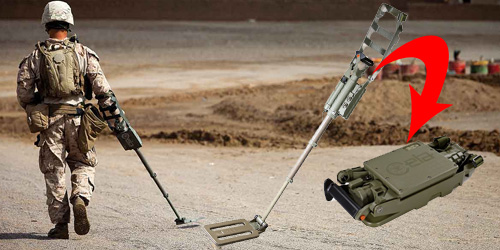

The CEIA CMD Metal Detector consists of a search head, a control unit, a telescopic pole and an elbow support jointed together in a one-piece design. The detection head is light and the wiring is designed to be protected against accidental damage.

The one-piece foldable design allows the CEIA CMD Metal Detector to be operational in a very short time and its compactness when folded makes it easily transportable.

The detector is equipped with a built-in Ni-MH battery charger which allows the batteries to be recharged (in 3 hours. max) without the need to remove them from the unit. This also allows full environmental protection of components and maximum operational speed for the user.

Ergonomic Operation

The CEIA CMD can be set up for operation in less than twenty seconds.

The Metal Detector offers the best combination of functional and operational characteristics, providing the highest ratio between overall dimensions, detection depth and operational weight.

The length of the telescopic pole can be adjusted for operation in upright, kneeling or prone positions.

Exclusive Automatic Soil Compensation System

The CEIA CMD does not require any manual calibration; in addition, optimum sensitivity is ensured over all types of terrain due to CEIA’s Exclusive Automatic Soil Compensation System.

Localization of metal objects is optimized by an Acoustic Modulation pinpointing system aided by a Visual LED bar graph, which allows the position of the detected mass to be accurately identified.

If desired, the LED bar can be masked with a snap down cover so as to avoid remote visibility (stealth operations).

Modern Control Unit

The watertight control unit and search head withstand the most stringent environmental requirements and Standards.

All controls are within easy reach of the operator:

• Volume adjustment
• Sensitivity adjustment
• Luminous bar indicator of signal intensity
• Built-in speaker
• Main switch and spring actuated reset switch
• Battery charger status indicator
• Snap-down cover to mask the led bar indicator
• Headphone connector - RS-232 interface

More Information

CEIA CMD Metal Detector - http://www.tactical.co.nz/ceia-cmd-compact-metal-detector/

Please contact us (Tactical Solutions www.tactical.co.nz) on +64 9 477 2800 to speak to one of our CEIA product specialists or email us at [email protected]
